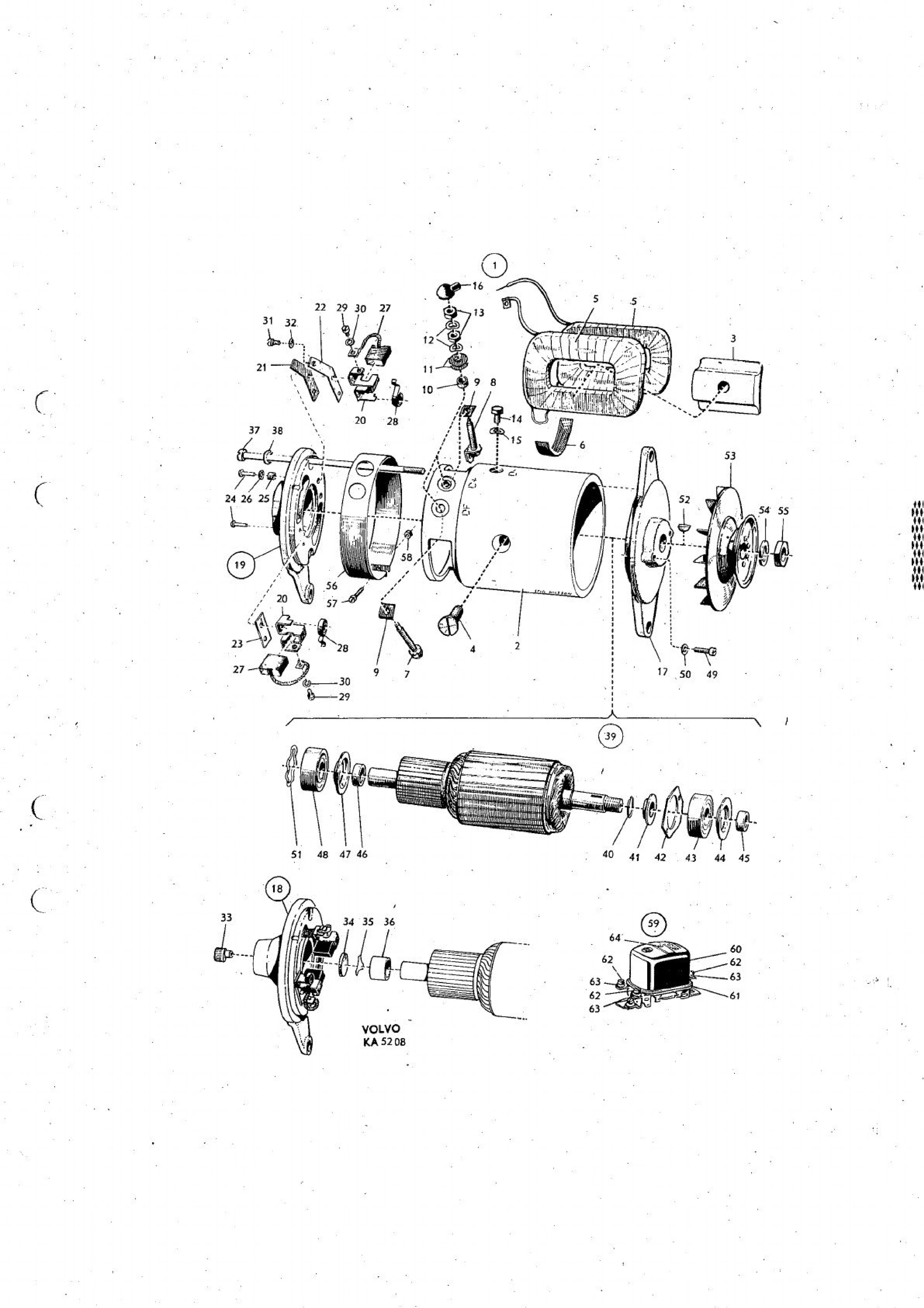

Likestrømsgenerator 140 (B18A 238751)

Dynamo A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Dynamo B

Antall per enhet: Dynamo 238751 - · Dynamo 238621 1

Screw A

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Field winding, coil 1 (red)

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Field winding, coil 2 (blue)

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Insulating strip

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Terminal screw, df

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Terminal, D

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Insulating plate A

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Insulating foring A

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Insulating washer A

Antall per enhet: Dynamo 238751 4 · Dynamo 238621 4

Fjær washer A

Antall per enhet: Dynamo 238751 4 · Dynamo 238621 4

Nut A

Antall per enhet: Dynamo 238751 4 · Dynamo 238621 4

Screw, d-

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Fjær washer A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Rubber cap

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Drive and bearing

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Commutator and bearing A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Commutator and bearing B

Antall per enhet: Dynamo 238751 - · Dynamo 238621 1

Brush holder

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Insulating plate B

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Terminal plate

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Base plate

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Rivet

Antall per enhet: Dynamo 238751 4 · Dynamo 238621 4

Insulating foring B

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Insulating foring B

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Carbon brush kit

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Brush fjær

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Screw B

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Fjær washer B

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Screw B

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Fjær washer B

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Lubricator

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Felt plate

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Plate

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Foring

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Screw C

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Fjær washer C

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Rotor A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 -

Rotor B

Antall per enhet: Dynamo 238751 - · Dynamo 238621 1

Clamping ring A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Splash washer A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Cover disk

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Ball bearing A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Splash ring B

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Spacer ring A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Spacer ring B

Antall per enhet: Dynamo 238751 - · Dynamo 238621 1

Splash ring C

Antall per enhet: Dynamo 238751 - · Dynamo 238621 1

Ball bearing B

Antall per enhet: Dynamo 238751 - · Dynamo 238621 1

Screw D

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Fjær washer B

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Clamping ring B

Antall per enhet: Dynamo 238751 - · Dynamo 238621 1

Key

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Pulley

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Fjær washer D

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Nut B

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Cover band

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Screw E

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Nut C

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Charging relay

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Casing

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Gasket

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

D+/61, d-

Antall per enhet: Dynamo 238751 2 · Dynamo 238621 2

Df

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

b+

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Fjær washer A

Antall per enhet: Dynamo 238751 4 · Dynamo 238621 4

Screw F

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Repair kit A

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1

Repair kit B

Antall per enhet: Dynamo 238751 1 · Dynamo 238621 1
