Hämtar sprängskiss…
26 posisjoner · – i sortiment
Zoom 100%
Klikk på et tall for å se artiklene

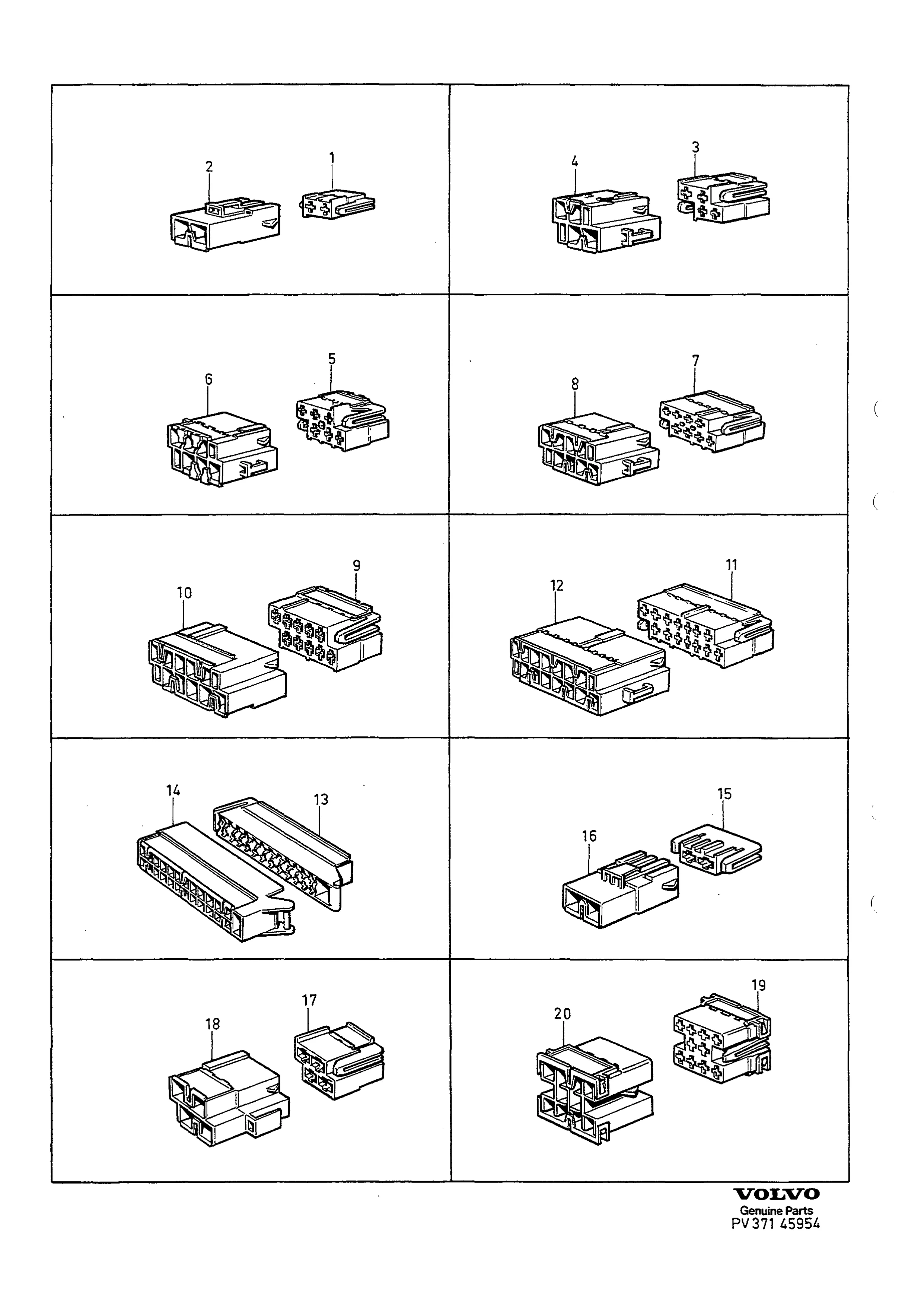

Connecteurs
Ledninger og sikringer · CONNECTEURS · side 369
Samme KA-nummer finnes også i: 740 1988–90 · 740 1991 · 760 1988 · 780 · 850 · 940 / 960 · 940 / 960 / S90 / V90
54 deler · – i sortiment
1
968376
Receptacle housing uncoloured A
968376
Antall per bil: X
1-2
968378
Tab housing gray A
968378
Antall per bil: X
1-3
968380
Receptacle housing black A
968380
Antall per bil: X
1-4
968382
Receptacle housing yellow A
968382
Antall per bil: X
2
968377
Tab housing uncoloured A
968377
Antall per bil: X
2-2
968379
Tab housing gray B
968379
Antall per bil: X
2-3
968381
Tab housing black A
968381
Antall per bil: X
2-4
968383
Tab housing yellow A
968383
Antall per bil: X
3
968384
Receptacle housing uncoloured B
968384
Antall per bil: X
3-2
968386
Receptacle housing gray A
968386
Antall per bil: X
3-3
968388
Receptacle housing black B
968388
Antall per bil: X
3-4
968390
Receptacle housing yellow B
968390
Antall per bil: X
4
968385
Tab housing uncoloured B
968385
Antall per bil: X
4-2
968387
Tab housing gray C
968387
Antall per bil: X
4-3
968389
Tab housing black B
968389
Antall per bil: X
4-4
968391
Tab housing yellow B
968391
Antall per bil: X
5
968392
Receptacle housing uncoloured C
968392
Antall per bil: X
5-2
968394
Receptacle housing gray B
968394
Antall per bil: X
5-3
968396
Receptacle housing black C
968396
Antall per bil: X
5-4
968398
Receptacle housing yellow C
968398
Antall per bil: X
6
968393
Tab housing uncoloured C
968393
Antall per bil: X
6-2
968395
Tab housing gray D
968395
Antall per bil: X
6-3
968397
Tab housing black C
968397
Antall per bil: X
6-4
968399
Tab housing yellow C
968399
Antall per bil: X
7
968400
Receptacle housing uncoloured D
968400
Antall per bil: X
7-2
968402
Receptacle housing gray C
968402
Antall per bil: X
7-3
968404
Receptacle housing black D
968404
Antall per bil: X
8
968401
Tab housing uncoloured D
968401
Antall per bil: X
8-2
968403
Tab housing gray E
968403
Antall per bil: X
8-3
968405
Tab housing black D
968405
Antall per bil: X
9
968408
Receptacle housing uncoloured E
968408
Antall per bil: X
10
968409
Tab housing uncoloured E
968409
Antall per bil: X
11
968410
Receptacle housing black E
968410
Antall per bil: X
11-2
974027
Socket housing gray
974027
Antall per bil: X
12
968411
Tab housing black E
968411
Antall per bil: X
12-2
974028
Pin housing gray
974028
Antall per bil: X
13
968412
Receptacle housing black F
968412
Antall per bil: X
14
968413
Tab housing black F
968413
Antall per bil: X
15
968584
Receptacle housing uncoloured F
968584
Antall per bil: X
15-2
968482
Receptacle housing black G
968482
Antall per bil: X
16
969008
Tab housing uncoloured F
969008
Antall per bil: X
16-2
968483
Tab housing black G
968483
Antall per bil: X
17
968515
Receptacle housing gray D
968515
Antall per bil: X
17-2
968484
Receptacle housing black H
968484
Antall per bil: X
18
968516
Tab housing gray F
968516
Antall per bil: X
18-2
968485
Tab housing black H
968485
Antall per bil: X
19
1363787
Receptacle housing white
1363787
Antall per bil: X
20
1363788
Tab housing white
1363788
Antall per bil: X
21
978151
Douille isolante A
978151
22
978152
Douille isolante B
978152
23
1324582
Douille isolante avec direction
1324582
24
966664
Douille isolante C
966664
25
1362993
Fiche isolante A
1362993
26
1362995
Fiche isolante B
1362995
Fra Volvos originalkatalog
- Katalog
- 850 (USA)
- Gruppe · side
- Gruppe 37 · Katalogside 369
Slik leser du numrene
- 968376 — Volvos originale artikkelnummer
Numrene nedenfor viser til artikkelnumrene i katalogen.
